Product introduction

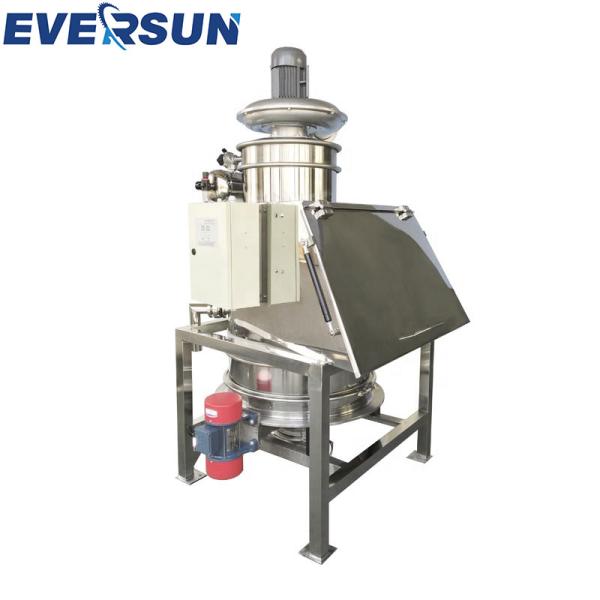

Stainless Steel 304/316LDust Free Bulk Bag Unloading Station For Lime Powder
Dust-free feeding equipment (also known as dumping station and manual unpacking machine) produced by our company is a manual equipment used to manually dump small bags of powder or granular materials into the downstream hopper. It makes materials fall into the storage hopper by gravity through manual unpacking and automatic dumping and other steps. The equipment is installed inside the filter cleaning device and exhaust fan, used to filter the dust generated in the dumping process, and clean tail gas into the atmosphere, so that the artificial can work in a clean environment.
The equipment is suitable for unpacking, releasing, screening and unloading small and medium-sized bag materials in food, pharmaceutical, chemical and metallurgical industries, especially for manual feeding and pre-screening of powder materials,for example, the 25KG or 50KG small bag packaging such as plastic resin, cement and food additives and other dry powder, granular materials for unpacking feeding.
Product parameter
| Feeding specification | 0~50kg/bag |
| Size of unloading station(mm) | Customized |
| Working air pressure(MPA) | 0.6-1.5 |
| Wind pressure | 1217-1640 |
| Power(KW) | Based on different model |
| Backblow type | Pneumatic pulse |
| Product type | Automatic |
| Optional equipment | Iron remover/vibrating screen/press bag device/metering and weighing |
| Structure material option | 316Lstainless steel,304 stainless steel,carbon steel |
| Material lifting | Bucket/lift truck/forklift truck/manual lifting |
| Static load | 1500N/2500N |
Product features
★ For the user to consider, the overall size of the equipment is compact, save space, exquisite structure beautiful;
★ Built-in dust collector, easy maintenance, can also be connected with the central dust collection;
★ According to the actual needs of users to select a variety of main material: SS304, SS304L, SS316,
316L, carbon steel, etc.
★ Can be configured with automatic cutting tool, and set automatic feedback, to realize the whole equipment chain automation;
Overall structure, overall and hopper can be customized according to user needs.

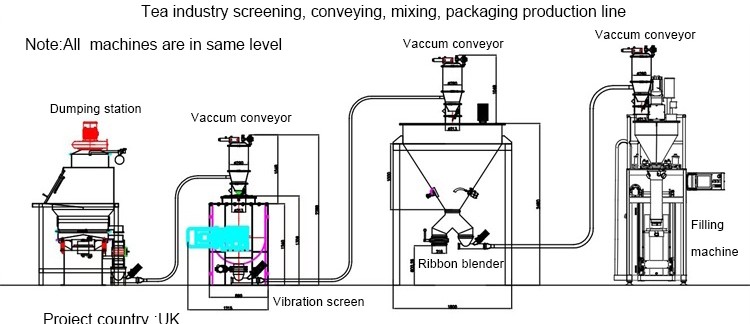

The picture below is a production line we once designed for a customer:UK indusrty screen ,convey,mix andpackage tea.
* Contact us to design your drawing today.
Production process
1.feeding black tea to dumping station
2.vacuum conveyor conveying black tea from dumping station hopper to sieve machine
3.screening black tea in sieve machine
4.separated black tea discharge to a small buffered silo
5.vacuum conveyor conveying separated black tea from buffered silo to 1000L ribbon blender
6.separated balck tea to the ribbon blender mixing
7.vacuum conveyor conveying mixed black tea from mixer hopper to a 1000L silo
8.vacuum conveyor conveying mixed black tea from 1000L silo to the filling machine
